| Material | MATERIAL CODE | APPLICATIONS |
DEOXIDIZED PHOSPHOROUS
COPPER | C1220 |
Fire-Alarm, Refrigerator
Air Conditioner
Vending Machine, Dehumidification Machine,
Kerosene Fan Heater, Stove Burner
Temperature Gauge, Heat Pump Water Heater(CO2),
Fishing Gear, Ear Thermometer
Electrode Tube for EDM drill
|
|
OXYGEN FREE COPPER |
C1020
C1011 |
Solderless Terminals, Tubular Fuse
Heat Pipes for PC cooling unit
Semi rigid Coaxial Cable
Birth-control Device
|
| BRASS |
C2700 |
Electrode Tube for EDM drill
Contact Probe for Testing PCB

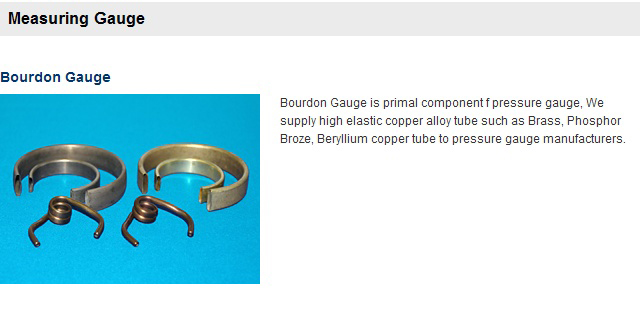

Pressure Gauge (Bourdon Gauge)
|
| PHOSPHOR BRONZE |
C5191
C5212 |
Contact Probe for Testin PCB
Pressure Gauge (Bourdon Gauge)
|
GOLD CLAD
(PHOSPHOR BRONZE) |
C5212
(base metal) |
Contact Probe for Testing PCB
Dental Equipment (Laser Knife)
|
BERYLLIUM COPPER
|
C1720 |
Contact Probe for Testing PCB
Pressure Gauge (Bourdon Gauge)
Optical Pickup
|
| NICKEL SILVER |
C7701
C7521 |
Contact Probe for Testing PCB
Musical Instrument (Flute, etc.)
|
| CUPRO NICKEL |
C7060
C7150 |
Tubular Fuse
Musical Instrument (Flute, etc.)
|
| TITANIUM |
JIS GRADE1
JIS GRADE2 |
Electrode Tube for Electrochemical Machining (STEM)
Accesory ?iNeckless, Bracelet?j,
Glasses?iSpring Hinge, Frame?j
|
PLATINUM
PLATINUM-IRIDIUM ALLOY |
Pt
Pt-10Ir |
Medical Catheter |
| TANTALUM |
Ta |
Medical Catheter |

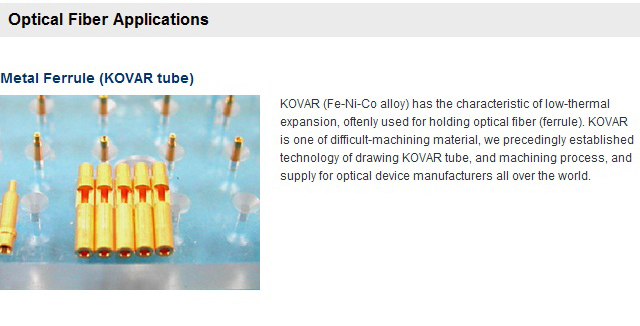

| KOVAR (Fe-Ni-Co ALLOY) |
KV-2
KV-6 |
Optical Communication Device (980nm Pump Laser, etc.) |
| INCONEL600 |
|
Aircraft, Sensor (Thermo Couple, etc.)
Heat-exchange Equipment |
| PERMALLOY |
PB (45-Parmalloy)
PC (78-Parmalloy) |
Communication Device |
| TUNGSTEN (Rod) |
W |
Tungsten Rod for EDM drill
Contact Probe (Rod Probe) |
| NICKEL |
|
Solderless Terminal, Sensor,
Vacuum Equipment |
| STAINLESS STEEL |
SUS304
SUS316L
SUS430 |
Semiconductor Manufacturing Equipment,
(Mass Flow Controller), Optical Communication Device,
Medical Device (Endoscope, Dental Device, etc.), Vacuum Equipment,
Fluid Dispensor, Analysis Equipment (Gas Chromatography), |
